24-bit PCI ljudkort från Creative Technology Ltd

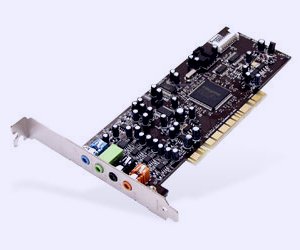

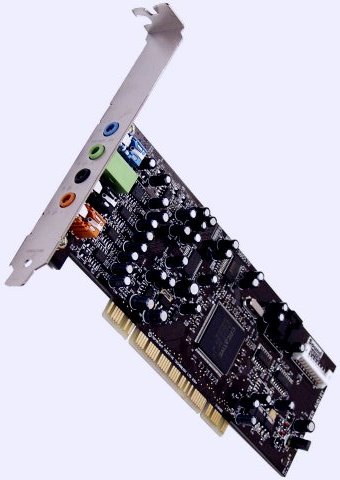

24-bit PCI Sound Card from Creative Technology Ltd
Produkt-specifikationer
- 7.1 surround utdata
- 24-bit/96kHz ljud resolution
- 100dB signal till brus förhållande
- Stödjer EAX ADVANCED HD 3.0 för spel.
- CMSS upp-mixar stereo till 7.1 surround.
- Tekniska specifikationer
- 24-bits analog till digitalkonversion av analog input i 96kHz samplingsnivå
- 24-bits digital till analogkonversion av digitala källor i 96kHz till analog 7.1 högtalar utdata
- 16- och 24-bits inspelning med samplingsnivå i 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 och 96kHz
- SPDIF output i upp till 24-bits resolution i valfri samplingsnivå i 44.1, 48 eller 96kHz
- 64-stämmig polyfoni och multiklang kapabilitet
- 128 GM & GS-kompatibla instrument och 10 trumkit
- Inkluderad 2MB eller 4MB GM SoundFont Bank
- Signal-till-brus förhållande (A-Weighted) = 100 dB (2V)
- Frekvensrespons: -3 dBr = <10 Hz till 40 kHz
- Specifikationerna baseras på digital till analog ljuduppspelning (exempelvis CDDA, WAV, MP3, Dolby Digital)
- On-Board anslutningar
- Line level out (Front/Sido/Bakre/Center/Subwoofer) eller hörlur-ut
- Line In / Microphone In / *Digital I/O
- Aux Audio in
- * Stöder SPDIF ut för stereo Digital Speaker/ anslutning med Creative Digital I/O Module (separat tillbehör)
- Omfattande Creative Media Source mjukvara medföljer.
- Creative Labs ger två års begränsad hårdvarugaranti
Product specifications
- 7.1 surround output
- 24-bit/96kHz audio resolution
- 100dB signal to noise ratio
- EAX ADVANCED HD1 3.0 support for gaming
- CMSS2 up-mixes stereo content to 7.1 surround
- Technical Specifications
- 24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate
- 24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog 7.1 speaker output
- 16-bit and 24-bit recording with sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
- SPDIF output up to 24-bit resolution at selectable sampling rate of 44.1, 48 or 96kHz
- 64-Voice polyphony and multi-timbral capability
- 128 GM & GS compatible instruments and 10 drum kits
- 2MB or 4MB GM SoundFont Bank included
- Signal-to-Noise Ratio (A-Weighted) = 100 dB (2V)
- Frequency Response at -3 dBr = <10 Hz to 40 kHz
- Specifications are based on digital-to-analog audio playback (for example: CDDA, WAV, MP3, Dolby Digital)
- On-Board Connectors
- Line level out (Front/Side/Rear/Centre/Subwoofer) or Headphone out
- Line In / Microphone In / *Digital I/O
- Aux Audio in
- * Supports SPDIF Out for Stereo Digital Speaker/ connection with Creative Digital I/O Module (sold separately)
- Comprehensive Creative MediaSource software provided
- Creative Labs gives 2 year finite guarantee on hardware
|
|
|
|
|
